FKM Rubber Precompound FD Series 20-60 Mooney Viscosity for Seals

Cuota De Producción:	20
Precio:	8

Información detallada

Descripción del Producto

Información detallada

Modelo No.:

Serie FD

Apariencia:

LOSA

Forma:

sólido

Viscosidad de Mooney:

Entre 20 y 60

Compresión:

Color:

Blanco lechoso

Espesor:

2mm-8m m

Especificación:

445*305*145m m

F Contenido:

El 66%

Peso específico:

1.81

Solubilidad:

Cetonas y ésteres

Mooney Viscosity ML:

Resistencia a la tracción:

15.9 MPa

Alargamiento en el descanso:

210 por ciento

Dureza:

La costa A 75

Resaltar:

FKM rubber precompound for seals

FKM rubber FD series 20-60 Mooney

FKM rubber precompound with warranty

Descripción del Producto

Fluoroelastomer FKM FPM Precompound DuPont 3m for Rubber Seals

Dowhon Group, founded in 2002 and headquartered in Chengdu National Industrial Park, is China's largest FKM manufacturer with extensive production capabilities and advanced facilities.

Company Profile

Annual production capacity of 6000mt in 2023
2 CNAS approved laboratories
10,000-class purification workshop for smart-wearable devices
100,000-class purification workshop for FKM precompounds and compounds
21 production lines for FKM precompounds and compounds
Total production capacity of 14,000mt

Dowhon Group operates with modern management practices, integrating R&D, production, sales, and service. Our facilities include:

10 fluoroelastomer precompound and compound production lines (8,000 tons/year capacity)
Specialized production lines for smart wearable devices (3,000 tons/year capacity)
Advanced FFKM rubber parts production for semiconductors, petrochemical, and aerospace applications

We maintain strict quality control under IATF 16949:2016, GB/T 28001-2011, and GB/24001-2004 standards. Our products serve automotive, semiconductor, consumer electronics, aerospace, and defense industries worldwide.

Product Description

FD-601E is a wide molecular weight distribution fluoroelastomer precompound containing copolymer of hexafluoropropylene and vinylidene-fluoride with curatives, designed for compression molding products like O-rings, V-rings, and gaskets.

Basic Characteristics

F Content	66%
Specific Gravity	1.81
Physical form	Slab
Color	Off-white
Solubility	Ketones and Esters
Mooney Viscosity ML 1+10@ 121ºC	61

Features

Excellent low temperature resistance
Excellent chemical resistance
Good mold flow
Low compression set

Recommended Processing Procedures

FD-601E can be compounded with internal mixers or two-roll mills using standard fillers and ingredients typical for fluoroelastomer formulations. Dry ingredients should be blended before adding to the rubbery solid. Maintain full cooling during compounding and cool the compound quickly after mixing.

Packing Information

PE film packed in cartons, 20kg net weight per carton.

Safety and Handling

Store in well ventilated place
No smoking in working areas
Avoid eye contact
Wash contacted skin and clothing thoroughly after handling
Refer to Material Safety Data Sheet for complete guidelines

Typical Properties

Compound	phr
FD-601E	100
N990	30
MgO-150	3
Ca(OH)2	6
Carnauba Wax	1

Rheological Properties

Property	Value	Test Method
ML, lb.in	2.21	ASTM D6601
MH, lb.in	21.36	ASTM D6601
Ts2, min	1:08	ASTM D6601
T10, min	1:07	ASTM D6601
T90, min	2:16	ASTM D6601

Physical Properties

Property	Value	Test Method
Tensile Strength, Mpa	15.9	ASTM D412
Elongation at Break, %	210	ASTM D412
Hardness, Shore A	75	ASTM D412

Compression Set %

200ºC@70h

ASTM D395, method B

Low Temperature Resistance

Tr10, ºC

-17

ASTM 1329

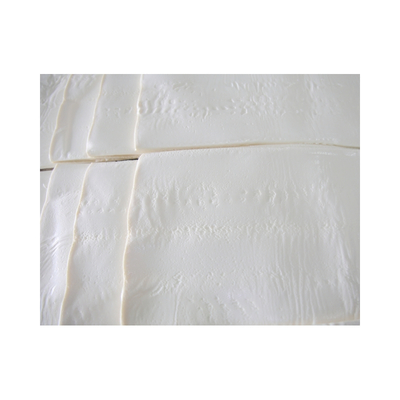

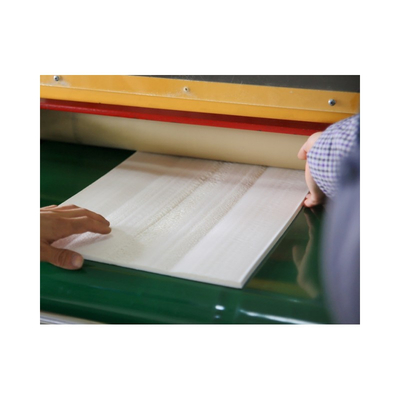

Detailed Photos

Packaging & Shipping

20kgs/25kgs per carton via courier (FedEx, DHL); 500kgs/625kgs/700kgs per pallet for shipping.

Certifications

ISO9001, ISO14001, IATF16949 certified. Currently holds 65 patents with 15 invention patents under application. Participated in formulation of 4 National Standards.

FAQ

1. What's your MOQ?
By air: 20-25KG; By sea: 100KG.

2. What's your delivery time?
Stock goods: 3 working days; Non-stock: 7-14 working days.

3. What's your package?
PE film in cartons (20-25kg net per carton); 500kgs/625kgs/700kgs per pallet.

4. How to select the right grade?
Contact our sales team for recommendations based on your specific requirements.
